Sega 32x PCB



No Option Selected

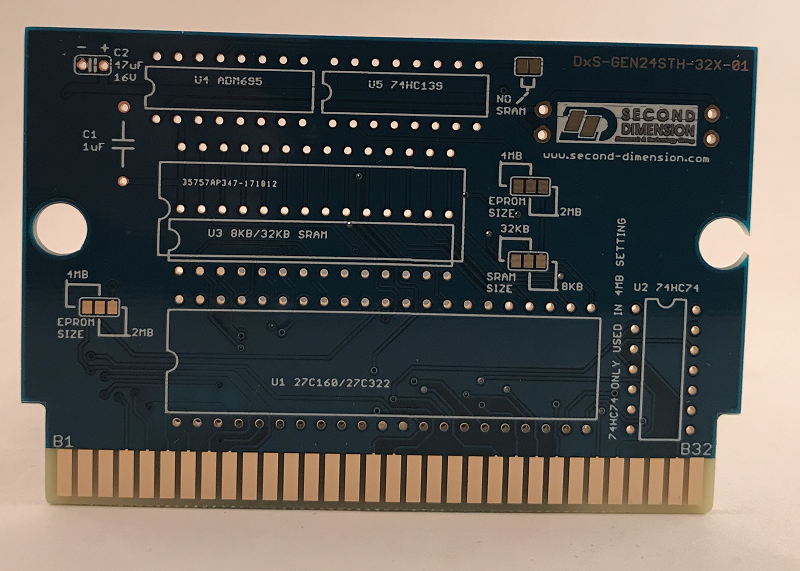

The DxS-32X24STH-01 PCB's support both 2MB and 4MB ROM sizes, SRAM support for either 256 KBIT or 64 KBIT SRAM, and is the perfect solution to test or produce your own game cartridges for the Sega 32x. Soldering either the 2MB or 4MB pads together, the M27C160 and M27C322 EPROMS are a direct placement and solder. PCB's are not assembled and do not include any components.

Specifications

• EPROM Support:
  • M27C160 (2MB/16Mb)
  • M27C322 (4MB/32Mb)
• Form Factor:
  • Fits in Standard OEM 32x cartridge cases only
• Supported Systems:
  • Sega 32x Consoles
  • Sega 32x ROM Binaries
• SRAM Support:
  • 256 KBIT SRAM
  • 64 KBIT SRAM
• User Manual
• Parts List:
  • U2: 74HC74
  • U4: ADM695
  • U5: 74HC139
  • C1: 0.1uF, 50v
  • C2: 47uF, 16v
  • SRAM: 64K SRAM
  • SRAM: 256K SRAM
  • Battery: CR2032
  • Holder: Battery Holder
